The resilient seated gate valve opens and closes flow on water, wastewater, irrigation and fire lines. Its epoxy coated body resists corrosion. Specs are here.
Resilient Seated Gate Valve – General Features
Resilient seated gate valves are used for fully opening or closing the flow in water, wastewater, irrigation, fire protection, and industrial piping systems.
High sealing performance with an elastomer-coated gate
Suitable for bidirectional flow
Low pressure loss
Low operating torque
Flanged connection
Epoxy-coated, corrosion-resistant body
Long service life and low-maintenance design
Suitable for manual or actuator operation

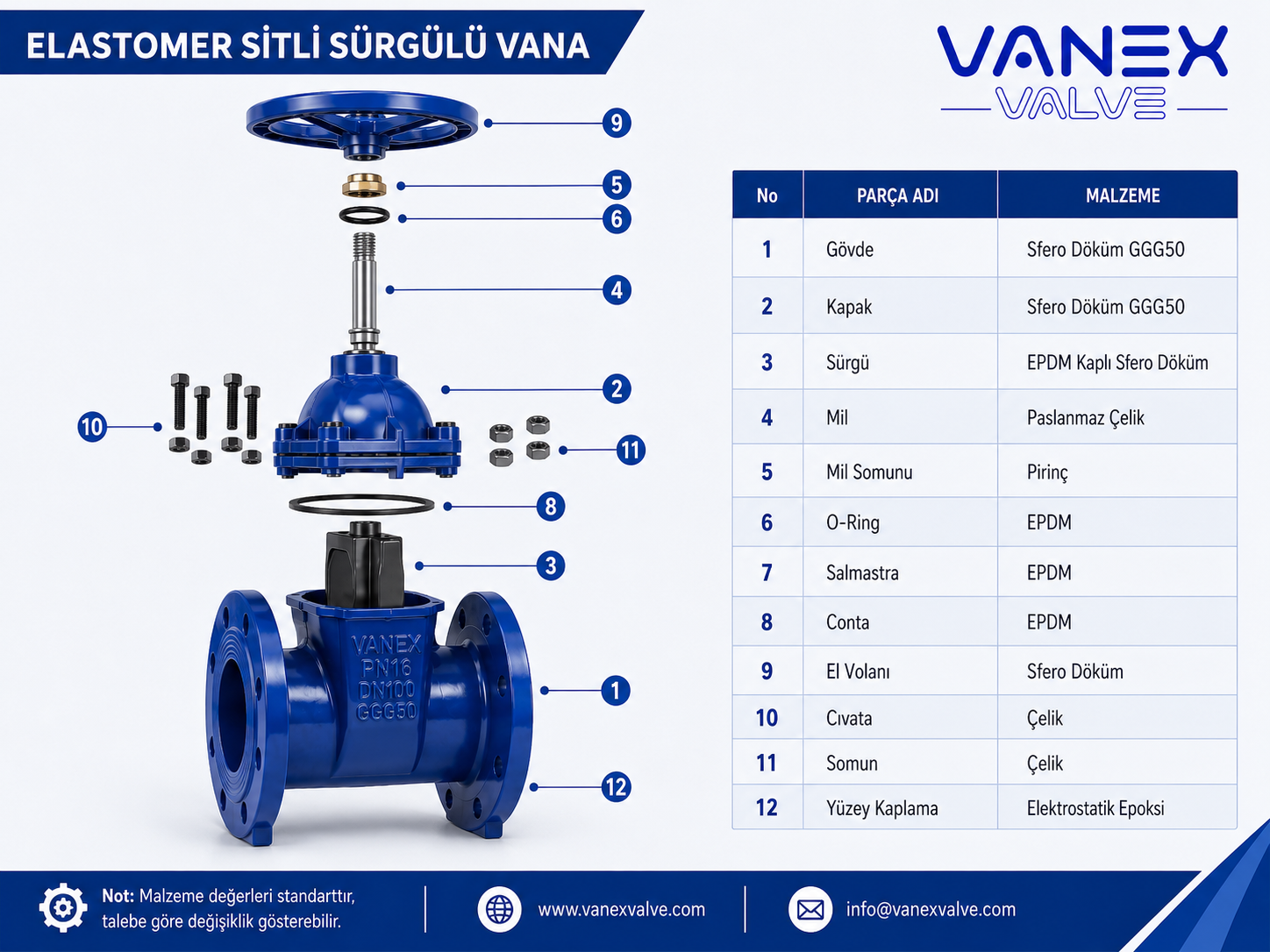

Elastomer Seat Gate Valve – Parts and Materials List
1. Body: Ductile iron (GGG40 / GGG50)
2. Bonnet: Ductile iron (GGG40 / GGG50)
3. Gate: EPDM-coated ductile iron
4. Stem: Stainless steel
5. Stem nut: Brass
6. O-ring: EPDM
7. Gland seal: EPDM
8. Gasket: EPDM
9. Handwheel: Ductile iron
10. Bolt: Steel
11. Nut: Steel
12. Surface coating: Electrostatic epoxy
Note: Material values are standard and may vary on request.
